Mechanical contact model implementation. More...

#include <contactmodelmechanical.h>

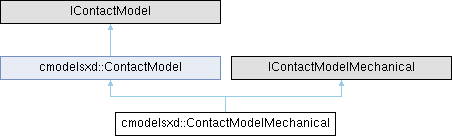

Inheritance diagram for cmodelsxd::ContactModelMechanical:

Public Member Functions
	ContactModelMechanical ()
	Constructor.

	~ContactModelMechanical () override
	Destructor.

int	getIndex () const override
	Overrides so that the class is not abstract.

void	setIndex (int) override

double	getActivityDistance () const override

void	resetForcesAndMoments () override

void	setForce (const DVect &, IContact *) override

void	setArea (const double &) override

double	getArea () const override

bool	isOKToDelete () const override
	Generic implementation - by default it is always OK to delete a contact.

ContactModel *	getContactModel () override
	Return the IContactModel pointer.

const ContactModel *	getContactModel () const override
	Return the const IContactModel pointer.

virtual bool	checkActivity (const double &)
	Default implementation - the contact is not active.

bool	isSliding () const override
	Default implementation - the contact model is not sliding.

bool	isBonded () const override
	Default implementation - the contact model is not bonded.

void	unbond () override
	Default implementation - the contact model is not bonded.

bool	hasNormal () const override
	Default implementation - the contact model has no normal.

DVect3	getNormal () const override
	Default implementation - the contact model normal is the 0 vector.

void	setPorePressure (const double &) override
	Default implementation - throws an exception if contact model doesn't support it.

void	propagateStateInformation (IContactModelMechanical *, const CAxes &n=CAxes(), const CAxes &l=CAxes()) override
	Default implementation - state information is not propagated.

virtual bool	endPropertyUpdated (const string &name, const IContactMechanical *c)=0

virtual bool	validate (ContactModelMechanicalState *state, const double &timestep)=0
	Returns true if contact is valid. Must be implemented.

virtual bool	forceDisplacementLaw (ContactModelMechanicalState *state, const double &timestep)=0

virtual bool	thermalCoupling (ContactModelMechanicalState , ContactModelThermalState , IContactThermal *, const double &)
	Used for explicit mechanical/thermal coupling. Returns true if anything changed.

virtual DVect2	getTimestepLimits (ContactModelMechanicalState *, const double &) const

virtual DVect2	getEffectiveTranslationalStiffness () const
	Return the effective translational stiffness - used for timestep calculation.

virtual DAVect	getEffectiveRotationalStiffness () const
	Return the effective rotational stiffness - used for timestep calculation.

void	getSphereList (const IContact , std::vector< DVect > , std::vector< double > , std::vector< double > ) override
	Default implementation so that no sphere list must be defined.

void	getCylinderList (const IContact , std::vector< DVect > , std::vector< DVect > , std::vector< double > , std::vector< double > , std::vector< double > ) override
	Default implementation so that no cylinder list must be defined.

virtual DVect	getForce () const
	Return the total force that the contact model holds.

virtual DAVect	getMomentOn1 (const IContactMechanical *) const

virtual DAVect	getMomentOn2 (const IContactMechanical *) const

virtual DAVect	getModelMomentOn1 () const
	Return the moment on 1 that the contact model holds, not including any torque.

virtual DAVect	getModelMomentOn2 () const
	Return the moment on 2 that the contact model holds, not including any torque.

ContactModelMechanical *	clone () const override
	Make a clone of this contact model. Must be implemeted.

	ContactModelMechanical (const ContactModelMechanical &) noexcept
	Copy constructor.

const ContactModelMechanical &	operator= (const ContactModelMechanical &)
	Assignment operator.

virtual void	addToStorage (poly::vector< ContactModelMechanical > *, int=-1)
	For polymorphic container access.

Public Member Functions inherited from cmodelsxd::ContactModel
	ContactModel ()
	Constructor.

virtual	~ContactModel ()
	Destructor.

virtual void	archive (ArchiveStream &)
	Used for save/restore. Important to implement.

virtual void	copy (const ContactModel *cm)
	Copy the contact model from cm. Must be overridden in derived classes.

IContactModel *	getContactModel () override
	Return the IContactModel pointer.

const IContactModel *	getContactModel () const override
	Return the const IContactModel pointer.

string	getName () const override

virtual string	getPluginName () const
	By default, the plugin name is the contact model name. Must be implemented in derived class.

string	getProperties () const override
	Returns a comma delimited string that lists the contact model properies. Must be implemented in derived classes.

base::Property	getProperty (uint32 i, const IContact *con=0) const override

bool	getPropertyGlobal (uint32) const override

int	isProperty (const string &c) const override

bool	setProperty (uint32 i, const base::Property &v, IContact *con=0) override

bool	getPropertyReadOnly (uint32) const override

bool	supportsInheritance (uint32) const override

bool	getInheritance (uint32) const override

void	setInheritance (uint32, bool) override

string	getMethods () const override

int	isMethod (const string &c) const override
	Processing of a methods based on the method list returned by getMehtods.

string	getMethodArguments (uint32) const override
	Default implementation so that no methods must be defined.

bool	setMethod (uint32, const std::vector< base::Property > &, IContact *c=0) override
	By default, no methods must be defined.

string	getEnergies () const override
	Default implementation so that no energies must be defined.

int	isEnergy (const string &c) const override
	Default implementation so that no energies must be defined.

double	getEnergy (uint32) const override
	Default implementation so that no energies must be defined.

bool	getEnergyAccumulate (uint32) const override
	Default implementation so that no energies must be defined.

void	setEnergy (uint32, const double &) override
	Default implementation so that no energies must be defined.

void	activateEnergy () override
	Default implementation so that no energies must be defined.

virtual bool	getEnergyActivated () const
	Default implementation so that no energies must be defined.

uint32	getMinorVersion () const override

void	destroy () override

void	getSphereList (const IContact , std::vector< DVect > , std::vector< double > , std::vector< double > ) override
	For contact specific plotting.

void	getCylinderList (const IContact , std::vector< DVect > , std::vector< DVect > , std::vector< double > , std::vector< double > , std::vector< double > ) override
	For contact specific plotting.

virtual string	getFishCallEvents () const
	Return a comma delimited liest of FISH callback events.

void	setEventVal (int i, int j)
	Set the order of the contact model events as stored in the ContactModelList.

void	setFromParent (const ContactModel *cm)
	For executing events within the contact model.

void	setNonForcePropsFrom (IContactModel *) override

uint32	getPropertyIndex (const string &name) const

string	getPropertyName (uint32 index) const
	Utility function that returns the property name given it's index.

void *	operator new (size_t size)

void *	operator new (size_t size, const char *file, unsigned line)

void	operator delete (void *v)

void	operator delete (void v, const char file, unsigned line)

virtual void	objectPropsTypes (std::vector< std::pair< string, InfoTypes > > *) const

virtual void	objectPropValues (std::vector< double > , const IContact ) const

Static Public Member Functions
static const char *	getPluginPrefix ()
	Prefix for this type of plugin.

static const char *	getPluginDirectory ()
	Directory for this type of plugin.

Static Public Member Functions inherited from cmodelsxd::ContactModel
static uint32	getMajorVersion ()

static AllocFunctions	setAllocFunctions (AllocFunctions afunc)

static AllocFunctions	getDefaultAllocFunctions ()

static AllocFunctions	getAllocFunctions ()

Additional Inherited Members
Public Types inherited from cmodelsxd::ContactModel
typedef void (	NewFunction) (size_t, const char *, unsigned)

typedef void(*	DeleteFunction) (void , const char , unsigned)

typedef std::pair< NewFunction, DeleteFunction >	AllocFunctions

Protected Attributes inherited from cmodelsxd::ContactModel
FArray< int, 5 >	cmEvents_
	Set of events as defined in a specified order. The int refers to the location of the event in the ContactModelMechanicalList.

Static Protected Attributes inherited from cmodelsxd::ContactModel
static NewFunction	newFunc_ = defaultNewFunction

static DeleteFunction	deleteFunc_ = defaultDeleteFunction

Detailed Description

Mechanical contact model implementation.

Member Function Documentation

◆ clone()

ContactModelMechanical * cmodelsxd::ContactModelMechanical::clone ( ) const

inlineoverridevirtual

Make a clone of this contact model. Must be implemeted.

Reimplemented from cmodelsxd::ContactModel.

◆ endPropertyUpdated()

virtual bool cmodelsxd::ContactModelMechanical::endPropertyUpdated	(	const string &	name,
		const IContactMechanical *	c )

pure virtual

Returns true if the property was actually updated in the contact model. Used for inheritance of properties from piece. Must be implemented.

◆ forceDisplacementLaw()

virtual bool cmodelsxd::ContactModelMechanical::forceDisplacementLaw	(	ContactModelMechanicalState *	state,
		const double &	timestep )

pure virtual

Updates force acting on end2 and moments acting on end1 and end2. Returns true if contact is active. Must be implemented.

◆ getMomentOn1()

virtual DAVect cmodelsxd::ContactModelMechanical::getMomentOn1 ( const IContactMechanical * ) const

inlinevirtual

Return the total moment on 1 that the contact model holds. This includes contributions from the torque.

◆ getMomentOn2()

virtual DAVect cmodelsxd::ContactModelMechanical::getMomentOn2 ( const IContactMechanical * ) const

inlinevirtual

Return the total moment on 2 that the contact model holds. This includes contributions from the torque.

◆ getTimestepLimits()

virtual DVect2 cmodelsxd::ContactModelMechanical::getTimestepLimits	(	ContactModelMechanicalState *	,
		const double &	) const

inlinevirtual

Returns timestep limits (defaults to (0.0,infinity)). These are further timestep restrictions that the contact model can place on the simulation, over and above those implied by stiffness.

◆ isOKToDelete()

bool cmodelsxd::ContactModelMechanical::isOKToDelete ( ) const

inlineoverridevirtual

Generic implementation - by default it is always OK to delete a contact.

Reimplemented from cmodelsxd::ContactModel.

The documentation for this class was generated from the following files:

C:/Source/itasca-suite/common/contactmodel/src/contactmodelmechanical.h
C:/Source/itasca-suite/common/contactmodel/src/contactmodelmechanical.cpp
